K-Tec Construction Scrapers

Land Leveling Made Easy

K-Tec builds industry leading construction scrapers that get the job done. Let the pros at GKB Equipment show you how to save time and money with a K-Tec solution. Scrapers range from 28-63 cubic yards. All scrapers have a short turning radius, flotation tires and minimum maintenance with 6 grease points or less.

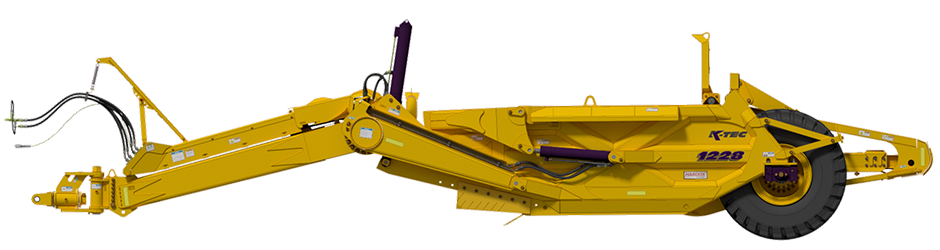

K-Tec Model 1228 Construction Scraper at GKB Equipment

K-Tec Model 1228

VERSATILITY AT ITS FINEST

K-Tec 1228 has versatility, making it one of K-Tec’s most popular models. The 1228 “Sand Shark” is designed to load well in all conditions and specializes in low ground pressure projects, and is proficient in sandy soil.

Click here to see the Model 1228 on the K-Tec website.

General Specifications (standard)
  • Heaped Capacity (ISO Rated): 28 Cubic Yards
  • Struck Capacity: 18.5 Cubic Yards
  • Max Loading Rating: 68,000 lbs
  • Bucket Dimensions: 12'W x 4'H x 10'6"L
  • Cutting Width: 12'
  • Cutting Edge: 3-Piece Blade
  • Gate Opening: 78"
  • Rack Height (Tiltable): 3'
  • Gate Cylinders: 4.5" x 28"
  • Lift Cylinders: 5.5" x 31"
  • Ejector Cylinder: 5" x 76"

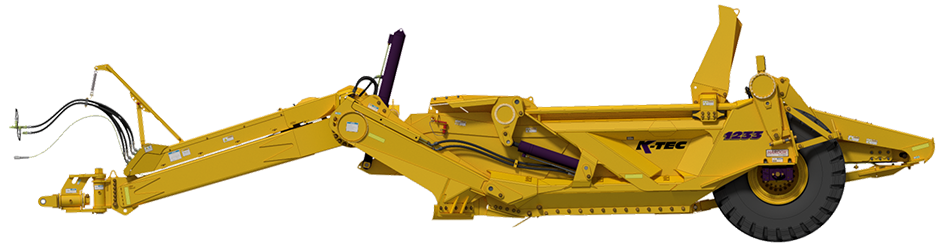

K-Tec Model 1233 Construction Scraper at GKB Equipment

K-Tec Model 1233

MOST POPULAR

The K-Tec 1233 is the most popular model in the fleet. This multipurpose machine is a powerful worker in any soil condition with unmatched fuel efficiency and an amazing loading speed.

Click here to see the Model 1233 on the K-Tec website.

General Specifications (standard)
  • Heaped Capacity (ISO Rated): 33 Cubic Yards
  • Struck Capacity: 19 Cubic Yards
  • Max Loading Rating: 80,000 lbs
  • Bucket Dimensions: 12'W x 4'3"H x 12'10"L
  • Cutting Width: 14'
  • Cutting Edge: 3-Piece Blade
  • Gate Opening: 80"
  • Rack Height (Tiltable): 4'
  • Gate Cylinders: 5" x 28"
  • Lift Cylinders: 5.5" x 32"
  • Ejector Cylinder: 5.5" x 76"

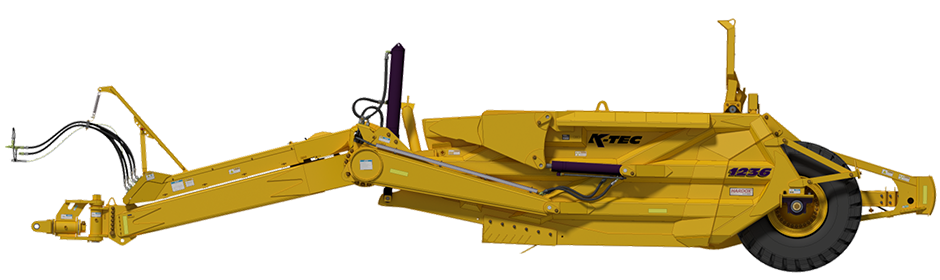

K-Tec Model 1236 Construction Scraper at GKB Equipment

K-Tec Model 1236

BEST WEIGHT TO PAYLOAD RATIO

The K-Tec 1236 has the best load to scraper weight ratio and the lowest cost per yard of any unit in the fleet. The 1236 has an extendable rack and sidewalls to contain stackable materials such as clay. Our groundbreaking innovations have made our scrapers the most productive and profitable option around.

Click here to see the Model 1236 on the K-Tec website.

General Specifications (standard)
  • Heaped Capacity (ISO Rated): 36 Cubic Yards
  • Struck Capacity: 24 Cubic Yards
  • Max Loading Rating: 86,400 lbs
  • Bucket Dimensions: 12'W x 5'H x 12'L
  • Cutting Width: 12'
  • Cutting Edge: 3-Piece Blade
  • Gate Opening: 84"
  • Rack Height (Tiltable): 4'
  • Gate Cylinders: 4.5" x 28"
  • Lift Cylinders: 5.5" x 38"
  • Ejector Cylinder: 5.5" x 76"
